DLE30 2-Stroke 30cc Single Cylinder Gasoline Engine for UAVs & RC Aircraft

A lightweight, high-efficiency 30cc gasoline engine for fixed-wing drones and RC planes. Delivers strong performance with reliable ignition and minimal vibration.

---

Product Description

The DLE30 2-Stroke Gasoline Engine offers outstanding performance for medium-sized UAVs and RC aircraft. With a displacement of 30.5cc and a maximum output of 3.7 horsepower at 8500 RPM, it provides strong thrust and stable operation across various applications.

Its lightweight design, integrated muffler, and smooth electronic ignition system make the DLE30 ideal for fixed-wing drone platforms, especially those used in aerial mapping, agriculture, or recreational flight. Backed by DLE’s reputation for reliability, this engine offers excellent fuel efficiency, dependable starts, and long-term durability.

---

Key Features

• Precision 2-stroke single-cylinder engine for UAVs and RC aircraft
• Delivers 3.7 HP at 8500 RPM
• Compact, CNC-machined aluminum alloy crankcase
• Electronic ignition system with wide voltage support
• Low vibration and smooth throttle response

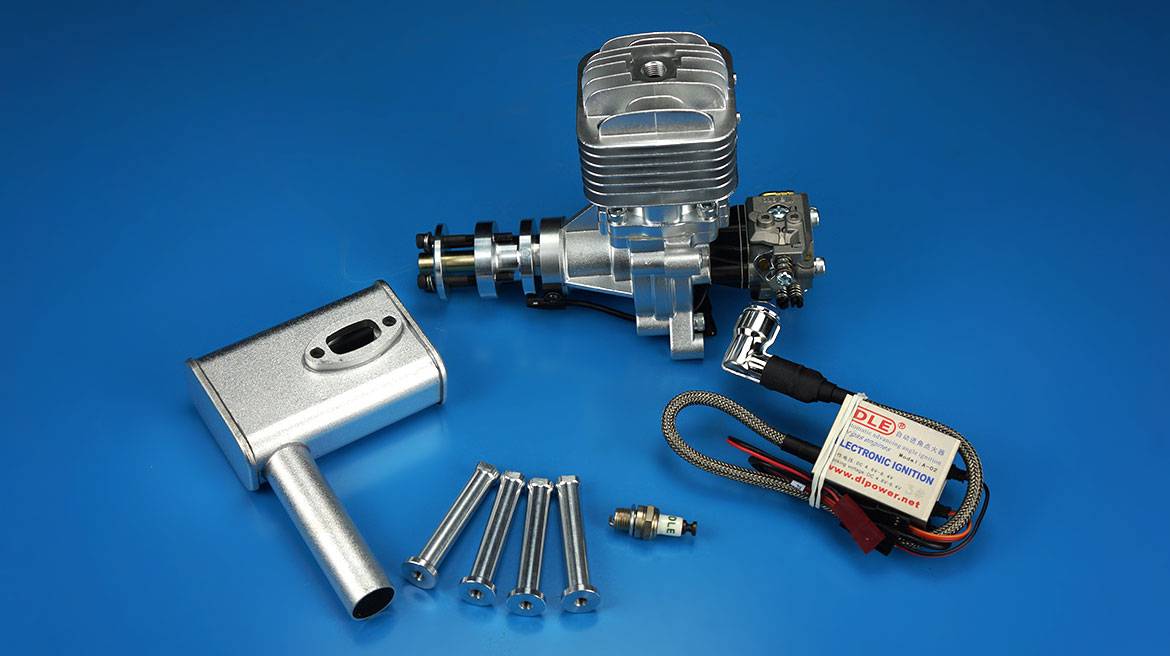

• Includes muffler and ignition system

---

Specifications

Engine Type	Single Cylinder, 2-Stroke
Displacement	30.5 cc
Bore x Stroke	36 mm × 30 mm
Output Power	3.7 HP @ 8500 RPM
Idle Speed	1600 RPM
Ignition Voltage	4.8V – 8.4V
Recommended Propeller	18×8 – 20×8
Weight (Engine)	1110 g
Weight (Ignition)	130 g
Weight (Muffler)	60 g
Total Weight	~1300 g

---
